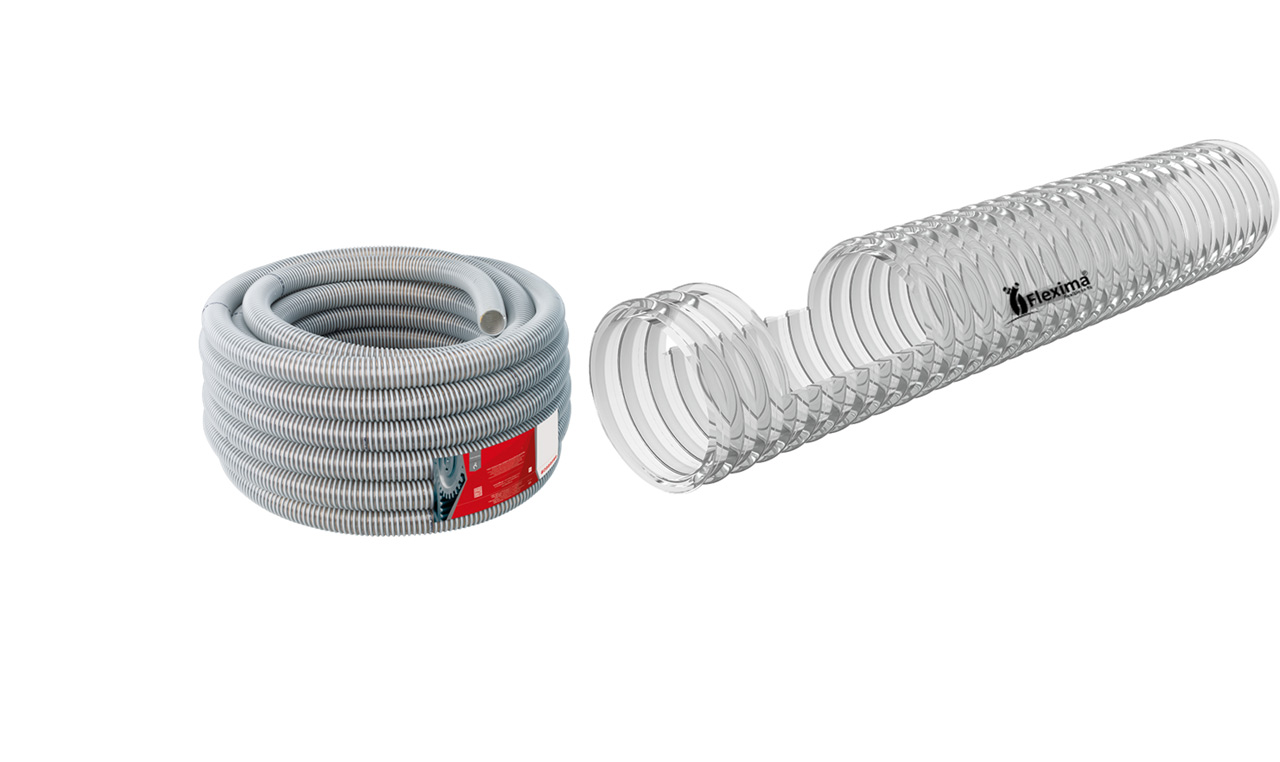

FLEXIMA PVC Seed Drill Hose or Orni Pipe is perfect reinforcement of semi-rigid transparent or white PVC with transparent soft PVC gives it both, strength and flexibility. We manufacture PVC Seed Drill Hose or Orni Pipe is high transparent made up of premium and UV resistant chemicals. PVC seed drill hose or orni pipe is extreme durable is normal operating conditions. Our PVC Seed Hose or transparent orni pipe is available in perfectly designed and developed for various seed drilling machinery. FLEXIMA brand PVC Seed Drill Hose is light and easy to carry and handle.
Why choose this hose:
Our manufactured PVC Seed Drill Hose or orni pipe has a smooth bore inside which helps in smoothly and quick conveyance of materials. PVC Seed Drill Hose or Orni Pipe is available in perfect diameter to suit various seed drilling machinery specifications. PVC Seed Hose is easy to install in food industry without joints since hoses available in 30 meters length. Our ISO 9001:2015 management system strengthens the standards of production of PVC Flexible Suction & Delivery Hose.
Features
• Smooth ID with low coefficient of friction to help with smooth transfer of seed and/or fertilizer and help reduce fan speeds.
• Includes clear spirals to see any blockages.
• UV protection for long life when left outside.
• Excellent Abrasion resistance
• Good Resistance to chemicals
• Soft Compound to assist in ease of installation
Applications:
• Agriculture & Horticulture
• Seed drill machine
• Fertilizer Transfer
Temperature:
Upto 120 F
Available Sizes
3/4", 1", 1.25", 1.5", 2", 2.25", 2.5", 3"
Colour
• Full Transparent
• Custom colour as per requirement
| Normal Size | Diameter | Bending Redius | Pressure (at 30°C) | Standard Length | |||
| (In mm) | (In inch) | ID (In mm) | OD (In mm) | (In mm) | Working (In kg/cm2) | Bursting (In kg/cm2) | (In meters) |
| 20 | ¾ | 19.0 ± 0.5 | 23.6 ± 1.0 | 45 | 8 | 25 | 30 |
| 25 | 1 | 25.4 ± 0.5 | 30.0 ± 0.5 | 48 | 8 | 25 | 30 |
| 30 | 1¼ | 31.8 ± 0.5 | 36.8 ± 0.5 | 68 | 7 | 21 | 30 |
| 40 | 1½ | 38.0 ± 0.5 | 43.3 ± 1.5 | 70 | 5.5 | 18 | 30 |
| 50 | 2 | 50.8 ± 0.5 | 57.8 ± 1.5 | 100 | 4.5 | 18 | 30 |
| 65 | 2½ | 63.5 ± 1.0 | 72.0 ± 1.5 | 120 | 4.5 | 18 | 30 |
| 75 | 3 | 76.2 ± 1.0 | 85.0 ± 1.5 | 155 | 4.5 | 18 | 30 |
| 100 | 4 | 101.2 ± 1.5 | 112.2 ± 2.0 | 213 | 4.5 | 14 | 30 |
